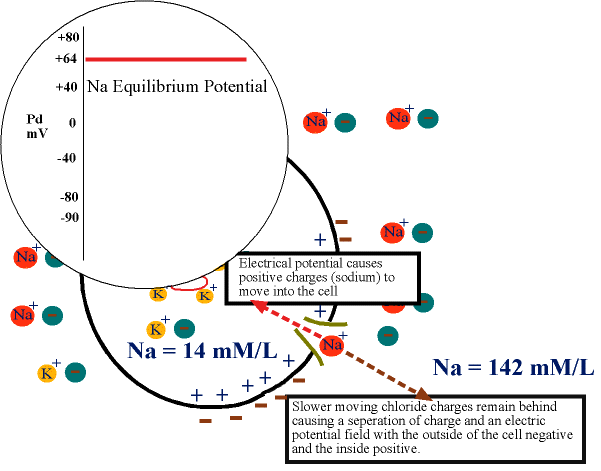

Sodium Equilibrium Potential
  • "The high Na+ concentration outside will cause some of the Na+ to move into the cell.

  • If there are no anion channels or if the anions are the slowly moving chloride ions than a separation of charge will develop opposite to that seen with the K+ channels.

  • The outside of the cell will be at a lower potential (negative) and the inside will be at a higher potential (positive).

  • At equilibrium the concentration force is equal and opposite to the electrical force and there is no net movement of Na+.

  • The difference in electrical potential across the cell membrane is called the Na+ equilibrium potential (+64) and can be determined by using the Nernst equation."

  • courtesy of Robert H. Parsons, Ph.D., Rensselaer Polytechnic Institute, used with permission
