Chest Landmarks

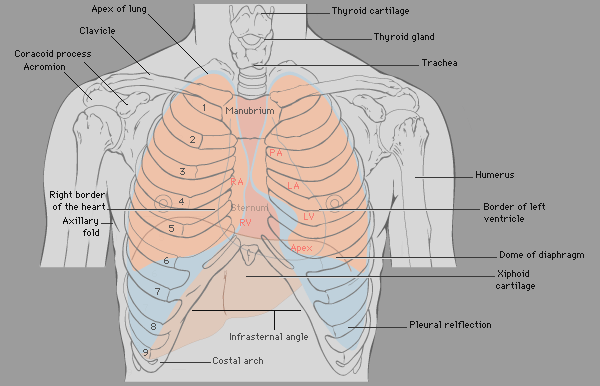

-- Yale center for Advanced Instructional Media, Yale Tech University School of Medicine, Medical Editor: C. Carl Jaffe, MD; Site Producer: Patrick J. Lynch (http://info.med.yale.edu/intmed/cardio/imaging/contents.html)-used with permission, copyright 2000,2001  Yale University School of Medicine

EKG Standard Leads
  • "There are three of these leads which are usually designated as I, II and III. They are all bipolar (i.e., they detect a change in electric potential between two points) and detect an electrical potential change in the frontal plane.
  • Lead I is between the right arm and left arm electrodes, the left arm being positive.
  • Lead II is between the right arm and left leg electrodes, the left leg being positive.
  • Lead III is between the left arm and left leg electrodes, the left leg again being positive.

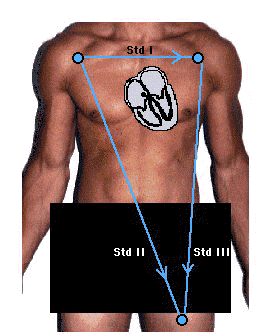

  • A diagrammatic representation of these three leads is termed Einthoven's triangle (shown in blue below), after the Dutch  doctor who first described the relationship. The central source of electrical potential in the triangle is the heart."
  • Image courtesy of New York University, Hippocrates Project NYU School of Medicine, Created by Steven Zweibel, Aaron Gindea, M.D. as Modified by Ambika Nayar. Animation and Art Coordinator: Kathleen Ruiz, Technical Coordination: Martin Nachbar, MD Program Director, Adam W. Hunger, BSE Systems Developer and Wei-Chen Chao, Multimedia / Virtual Reality Specialist, used with Permission
  •  http://endeavor.med.nyu.edu/courses/physiology/courseware/ekg_pt1/
Precordial Lead Locations

"These six unipolar leads, each in a different position on the chest, record the electric potential changes in the heart in a cross sectional plane. Each lead records the electrical variations that occur directly under the electrode." Image courtesy of New York University, Hippocrates Project NYU School of Medicine, Created by Steven Zweibel, Aaron Gindea, M.D. as Modified by Ambika Nayar. Animation and Art Coordinator: Kathleen Ruiz, Technical Coordination: Martin Nachbar, MD Program Director, Adam W. Hunger, BSE Systems Developer and Wei-Chen Chao, Multimedia / Virtual Reality Specialist, used with Permission (http://endeavor.med.nyu.edu/courses/physiology/courseware/ekg_pt1/)

ECG

Ventricular rhythms

  • Ventricular Premature Contraction (VPC or PVC)

    • 1Characteristics:

      • Rate -- is influenced by (dependent upon) underlying rhythm

      • Regularity -- irregular

      • Presence of "P" wave: Not present on the PVC

      • P:QRS ratio -- No "P" wave on the PVC

      • PR interval: none

      • QRS width: "wide" (= 0.12 seconds"; unusual appearance

      • No "grouping"

      • Dropped beats: none

    • Example below: multifocal pvc's following NSR. Note different "forms" or morphology of the PVC. Leads II, aVF, and V5 are represented

      obtain Quicktime for support of the plugin

    • General Background

      • Common arrhythmias-not necessarily associated with heart disease

      • Adult males: incidence of PVCs > or  = 60%

      • By themselves, PVCs are not associated with increased mortality/morbidity; however, in patients having previous myocardial infarction, PVCs occurring at a rate >10/hr is associated with increased mortality: [as noted below, a stronger risk factor is reduced ejection fraction}

      • Very early cycle PVCs, i.e. R- on T  PVCs may be associated with increased sudden death risk, particularly during acute ischemic episodes and with QT prolongation- note rhythm strip below for an example of R- on T-wave induction of ventricular fibrillation:

      • "All recordings are printed on standard electrocardiographic paper at 25 mm/s paper speed (1 mm corresponds to 40 ms, 5 mm corresponds to 200 ms). The vertical resolution, is 10 mm/mV unless otherwise noted. The filtration of the electrocardiogram varied with every recording. The monitor leads used were non-standard bipolar precordial leads that do not correspond to standard electrocardiographic leads. Nevertheless, differences in recording techniques have negligible effect on recognition of arrhythmias presented." image and description:  Dusan Stajer, Samo Ribaric,Ljupco Todorovski Centre for Intensive Internal Medicine, University Medical Centre Ljubljana, Zaloska 7, 1000 Ljubljana, Slovenia (http://www.mf.uni-lj.si/mmd/cardio-a/index-eng.html)

      • PVCs may occur singly or in certain patterns:

        1. bigeminy -- every sinus beat is followed by PVC

        2. trigeminy -- 2 sinus beats are followed by a PVC

        3. two consecutive PVCs = "pairs" or "couplets"

        4. PVCs with the same pattern = monomorphic

        5. PVCs with different patterns = polymorphic

    • 2Electrophysiology:

      •  PVCs typically produce a fully compensatory pause [the interval between conducted sinus beats that bracket the PVC =two basic RR intervals], because most PVCs do not conduct in a retrograde manner to the atrium to reset the SA node

        •  When retrograde conduction to the atrium occurs, inverted P waves may be observed in leads II, III, and aVF. {pause will not be compensatory}

        •  Retrograde conduction can occur as far as the AV node, causing the AV node become refractory to the next sinus impulse and resulting in reduced conduction exhibited as a prolonged PR interval.

          • This type of prolonged PR interval is due to "concealed" retrograde conduction of the ventricular impulse to the AV node

          • When the PVC does not exhibit an effect on the PR interval (or any manifestation of retrograde concealed conduction, thus not influencing the next sinus impulse), the PVC is termed an "interpolated PVC"

  • courtesy of  Frank G.Yanowitz, M.D. &  The Alan E. Lindsey  ECG Learning Center, used with permission; http://medstat.med.utah.edu/kw/ecg/index.html "PVC's usually stick out like sore thumbs; PAC's are often difficult to see because they are hidden in the preceding ST-T wave. The PVC in this example is mostly negative in lead V1 suggesting RV origin; i.e., most of activation is moving in posterior direction towards the left ventricle."

Marquette Electronics Copyright 1996 (used with permission; second source:The Alan E. Lindsey  ECG Learning Center)

Marquette Electronics Copyright 1996 (used with permission; second source:The Alan E. Lindsey  ECG Learning Center)

  • 3Clinical Considerations:

    • Following the acute phase of myocardial infarction (post-infarction time frame), the long-term total mortality risk an sudden cardiac death risk are predicted by several factors

      •  Most important factor for sudden cardiac death and non-sudden cardiac death--

        • Extent of myocardial damage occurring as a result of the acute infarction as evidenced by ejection fraction reduction, presence of heart failure, and functional capacity limits

      • Other risk factors:

        •  Increasing post-myocardial infarction PVC frequency (above the range of 10-30 PVCs/hr documented by 24-hr ambulatory monitoring

        • Probably more significant risk factor is advanced "forms", i.e. salvos, , nonsustained ventricular tachycardia (VT)

        • PVCs interact significantly with reduced left ventricular ejection fraction

        •  The combination of salvos or nonsustained ventricular tachycardia associated with an ejection fraction < 30% defines a patient subset with an annual death risk of about 20%

      • Frequent PVCs or bigeminy may cause (infrequently) syncope or lightheadedness as a result of inadequate cardiac output due to heart rate reduction
