Anesthesia Pharmacology: The Pharmacology of Long-Acting Beta-2 Adrenergic Agonists and Related Drugs.

β-Adrenergic Receptor Agonists

Long-Acting β₂-selective adrenergic receptor agonists:¹⁵²

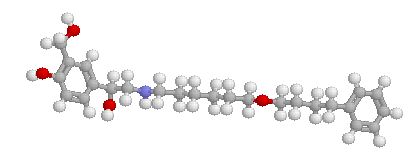

Salmeterol (Serovent)
Salmeterol (Serevent) is classified as a β₂-selective adrenergic receptor agonist which exhibits a duration of action in excess of 12 hours.¹⁵²
- Compared to albuterol, salmeterol appears more β₂-adrenergic receptor selective by a factor of about 50.
- Comparably effective as a cholinergic, muscarinic antagonist ipratropium and more effective than oral theophylline, salmeterol administration is associated with improved quality of life and improved pulmonary function and provides symptomatic relief for COPD patients.
- Salmeterol effects are additive when administered along with inhaled ipratropium or oral theophylline.
Extended pharmacological activity associated with salmeterol reflects not only its highly lipophilic nature but also its binding to a specific site within the β₂ receptor.¹⁵²
- Salmeterol is metabolized by the hepatic microsomal drug metabolizing system, specifically by the cytochrome P450 form, CYP3A4; the metabolic product, α-hydroxy-salmeterol is excreted in the feces.
- Salmeterol's slow onset of pharmacological action disqualifies this agent for use in management of acute bronchospastic attacks, although salmeterol (or formoterol) may be appropriate for managing nocturnal asthma in those subset of patients remaining symptomatic despite receiving anti-inflammatory drugs and other more standard management approaches.
- Salmeterol administration may result in tachycardia, elevated plasma glucose, tremor, and a reduction in plasma K⁺ concentration (β₂-receptor mediated).
Moderate or severe, persistent asthma may be effectively managed by long-acting β-adrenergic receptor agonists in combination with an inhaled corticosteroid.¹⁵²
- However, results from a clinical research trial (SMART), Salmeterol Multicenter Asthma Research Trial have suggested that salmeterol therapy is associated with increased risk of fatal or near-fatal asthma incidence when compared to "usual therapy."
- One criticism of the SMART study was that only a minority of patients in the trial were taking inhaled corticosteroids; a second point is that patients taking both long-acting β-adrenergic receptor agonists and inhaled corticosteroids may not be at elevated risk for asthma mortality.¹⁵²
However, in February 2010 the US Food and Drug Administration (FDA) has required a change with respect to how long-acting inhaled medications, referred to as "Long-Acting Beta-Agonists (LABAs), be used in asthma treatment.¹⁶⁹
- The changes were based on FDA analysis of studies indicating increased risk of severe exacerbation of asthma symptoms, leading to hospitalizations in pediatric as well as an adult patients as well as death in some patients when LABAs were used in treatment of asthma.
- LABAs are approved as single-ingredient products (e.g. Serevent and Foradil) and is part of combination products containing inhaled corticosteroids (Advair and Symbicort) for treatment of both asthma and chronic obstructive pulmonary disease (COPD).
- The 2010, FDA recommendations apply only to LABAs use in treatment of asthma.
- The FDA indicates that to ensure safe use of these agents:
  - "The use of LABAs is contraindicated without the use of an asthma controller medications, such as an inhaled corticosteroid. Single-ingredient LABAs should only be used in combination with an asthma controller medication; they should not be used alone.
  - "LABAs should only be used long-term in patients whose asthma cannot be adequately controlled on asthma controller medications.
  - "LABAs should be used for the shortest duration of time required to achieve control of asthma symptoms and discontinued, if possible, once asthma control is achieved. Patient should then be maintained on asthma controller medication.
  - "Pediatric and adolescent patients require the addition of a LABA to an inhaled corticosteroid should use a combination product containing both an inhaled corticosteroid and a LABA to ensure compliance with both medications."
The FDA is also requiring a risk management program named "Risk Evaluation and Mitigation Strategy (REMS) for these agents.¹⁶⁹
- REMS for LABAs include a revised Medication Guide written specifically for patients as well as a plan to educate healthcare professionals about appropriate use of LABAs.
- Furthermore, the FDA is requiring manufacturers to conduct additional clinical trials that further evaluate LABAs safety when used in combination with inhaled corticosteroids.
The FDA has concluded that LABAs benefits in improving asthma symptoms outweigh potential risks when used appropriately with an asthma controller medication in those patients who require addition of LABAs; furthermore, the FDA leaves that the safety measures will improve safe use of these agents.¹⁶⁹
- The FDA also has provided additional information for patients-including the following:
  - "Long-Acting Beta Agonists (LABAs) do not relieve sudden-onset asthma symptoms. Patients should always have a rescue inhaler, such as an albuterol inhaler, to treat sudden onset asthma symptoms.
  - "LABAs must never be taken alone for the treatment of asthma.
  - "Patients who need LABA plus an asthma controller medication that is not available as a combination product should work with their healthcare professionals to ensure that each individual medication is taken correctly.
  - "Patient should read the Medication Guide for LABAs.
  - "Patient should talk with their healthcare professional to learn the warning signs of worsening asthma.
  - "Patient should discuss any questions they have about the use of LABAs with their healthcare professional."
- The FDA has also provided additional information for healthcare professionals-including the following:¹⁶⁹
  - "Long-Acting Beta Agonists (LABAs) should not be started in patients with acutely deteriorating asthma.
  - "Discuss with patients and families the warning signs of worsening asthma and advise them to seek immediate medical attention should their condition deteriorate.
  - "LABAs do not relieve sudden-onset asthma symptoms. A rescue inhalers, such as an albuterol inhaler, should be prescribed to treat sudden asthma symptoms.
  - "Increase patients, families, and caregivers to read the Medication Guide that accompanies LABA prescriptions.
  - When possible, prescribed a combination inhaled corticosteroid-LABA product to pediatric and adolescent patients who need the addition of a LABA for better control of their asthma. Using a combination product will help ensure compliance with both of these medications."

**FDA Approved Medications Containing a Long-Acting Beta Agonist (LABA)**¹⁶⁹
Brand Name	LABA active ingredient	Corticosteroid active ingredient	FDA Approved Uses
Serevent Diskus	Salmeterol	None	Asthma, COPD, exercise-induced bronchospasm
Foradil Aerolizer	Formoterol	None	Asthma, COPD, exercise-induced bronchospasm
Foradil Certihaler*	Formoterol	None	Asthma
Advair Diskus	Salmeterol	Fluticasone	Asthma, COPD
Advair HFA	Salmeterol	Fluticasone	Asthma
Symbicort	Formoterol	Budesonide	Asthma, COPD
Brovana	Arformoterol	None	COPD
Perforomist	Formoterol	None	COPD

* not currently marketed in the U.S.

As noted above, the FDA decision to require REMS and class-labeling alteration to drug labels for LABAs was based on the Salmeterol Multi-center Asthma Research Trial (SMART), the Salmeterol Nationwide Surveillance study (SNS) and a meta-analysis conducted by the FDA in 2008 which was discussed at the joint Pulmonary Allergy Drugs, Drug Safety and Risk Management, and Pediatric Advisory Committees, held on December, 2008.¹⁶⁹

SMART is described as a large, randomized, 28-week, placebo-controlled trial which evaluated patients 12 years of age and older receiving standard asthma therapy and the addition of either salmeterol or placebo.
- A total of 26, 355 patients were evaluated in the study with results indicating that patients receiving salmeterol were in an increased risk for asthma-related death compared to patients receiving placebo.
- Subgroup analyses were also performed and this analysis suggested that asthma-related death in Caucasians and African Americans occurred at a higher rate in those patients using salmeterol compared to placebo. These results are summarized below:¹⁶⁹

**SMART Results**¹⁶⁹
SMART Patients	Asthma-Related Deaths in Salmeterol Group n (%*)	Asthma-Related Deaths in Placebo Group n (%*)	Relative Risk of Asthma-Related Death (95% Confidence Interval)	Excess Deaths Expressed per 10,000 Patients+ (95% Confidence Interval)
All Patients§ salmeterol: n = 13,176 placebo: n = 13,179	13 (0.10%)	3 (0.02%)	4.37 (1.25, 15.34)	8 (3, 13)
Caucasian Patients Salmeterol: n = 9,281 Placebo: n = 9,361	6 (0.07%)	1 (0.01%)	5.82 (0.70, 48.37)	6 (1, 10)
African American Patients Salmeterol: n = 2,366 Placebo: n = 2,319	7 (0.31%)	1 (0.04%)	7.26 (0.89, 58.94)	27 (8, 46)

^"* 28‑week estimate, adjusted according to actual lengths of exposure to study treatment to account for early withdrawal of patients from the study.
⁺ Estimate of the number of additional asthma‑related deaths in patients treated with salmeterol in SMART, assuming 10,000 patients received salmeterol for a 28‑week treatment period. Estimate calculated as the difference between the salmeterol and placebo groups in the rates of asthma-related death multiplied by 10,000.
^§ The Total Population includes Caucasian, African American, Hispanic, Asian, and "Other" and "not reported". No asthma‑related deaths occurred in the Hispanic (salmeterol n = 996, placebo n = 999), Asian (salmeterol n = 173, placebo n = 149), or "Other" (salmeterol n = 230, placebo n = 224) subpopulations. One asthma‑related death occurred in the placebo group in the subpopulation whose ethnic origin was "not reported" (salmeterol n = 130, placebo n = 127)."

The SNS was a 16-week, double-blind study which compared additional salmeterol or albuterol to stand asthma therapy in 25,180 asthma patients 12 years of age and older.¹⁶⁹
- In this study there was an increase in the number of respiratory and asthma-related deaths in the salmeterol group (0.07%) compared to the albuterol group (0.02%).
- The FDA, as noted above also performed a meta-analysis of 110 studies evaluating the use of LABAs in 60,954 asthma patients.
- This meta-analysis used a composite endpoint to measure substantial asthma symptom worsening including asthma-related death, intubation, and hospitalization.
- Results of the meta-analysis suggested an increased risk for severe exacerbation of asthma symptoms in patients using LABAs compared to those not using LABAs.
- The largest risk difference per 1000 treated individuals was seen in children 4-11 years of age as noted below.
- The results of the meta-analysis appeared primarily driven by asthma-related hospitalizations; however, other meta-analysis evaluating safety of LABAs in the treatment of asthma have not shown a significant increase in the risk for severe asthma worsening events.

**Meta-Analysis Results: Number of Patients Experiencing an Event*¹⁶⁹**
Patient Population	LABA Patients experiencing an event	Non-LABA Patients experiencing an event	Risk Difference Estimate per 1000 treated patients	95% Confidence Interval
All Patients n = 30,148 LABA patients n = 30,806 non-LABA patients	381	304	2.80	1.11 – 4.49
Patients ages 12 to 17 years n = 3,103 LABA patients n = 3,289 non-LABA patients	48	30	5.57	0.21 – 10.92
Patients ages 4 to 11 years n = 1,626 LABA patients; n = 1,789 non-LABA patients	61	39	14.83	3.24 – 26.43

* Event defined as the composite endpoint (asthma-related death, intubation, and hospitalization)

The FDA in the 2010 timeframe concluded that there was insufficient data to decide whether using LABAs with an inhaled corticosteroid reduces or eliminates risk of asthma-related death and hospitalization.
- Furthermore, the FDA is requiring LABAs manufacturers to conduct studies that evaluate safety of LABAs when used in combination with inhaled corticosteroids.
- Also, the FDA concluded that there is a risk for severe exacerbation of asthma symptoms, leading to hospitalizations in pediatric as well as an adult patients as well as staff in some patients using LABAs for asthma treatment and therefore is requiring the REMS and class-labeling changes to improve product safety.¹⁶⁹
As a result of the above considerations, the FDA has placed a "black-box" labeling warning for salmeterol (Serevent), formoterol (Foradil) and arformoterol (Brovana).
- Moreover, the use of long-acting β2-adrenergic receptor agonists appear recommended only for patients in whom inhalational corticosteroids alone either are unable to establish good asthma control or for initial treatment.^152,170

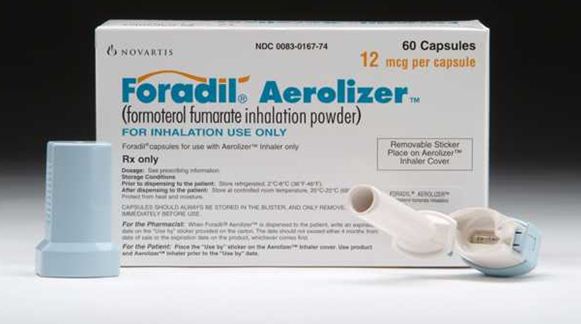

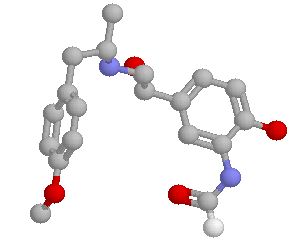

Formoterol (Foradil)
- Formoterol (Foradil)
- Formoterol (Foradil) is classified as a long-acting β₂-selective adrenergic receptor agonist which causes bronchodilation shortly after inhalation (minutes).
- Bronchodilation may last for up to a half a day.
  - The agent exhibits noteworthy lipophilicity, which confers an important advantage of formoterol compared to other similar agents, that of particularly prolonged duration of action.
  - The extended duration of up to 12 hours may be of special therapeutic benefit in managing nocturnal asthma.
  - Lipophilic drugs tend to partition into cell membrane lipid bilayers, as well as other sites enriched in lipid; however, concentration of drug within cell membrane may provide a "reservoir", diffusion from which accounts for extended activation of β₂-receptors.
- Formoterol has been approved by the FDA for several applications, including asthma management, bronchospasm, COPD and for prophylaxis of exercise-induced bronchospastic reaction.
  - This latter use refers to formoterol administration prior to beginning exercise with the therapeutic intent of preventing bronchospasm due to this exercise.
  - Formoterol may also be used along with short-acting β₂-adrenergic receptor agonists, inhaled or systemic administration of glucocorticoids and theophylline.
    - An example of formoterol combined with a corticosteroid is mometasone/formoterol (Dulera) combination for asthma management.¹⁷¹
      - This combination is available in a single metered-dose inhaler (Dulera), approved for asthma treatment in patients 12 years old and older. It represents the third corticosteroid/long-acting beta 2-agonist (LABA) combination in the United States.
      - Other combinations are budesonide/formoterol (Symbicort) and fluticasone/salmeterol (Advair Diskus).
      - These combination agents are not suitable either for initial asthma treatment or acute management of asthma symptoms.

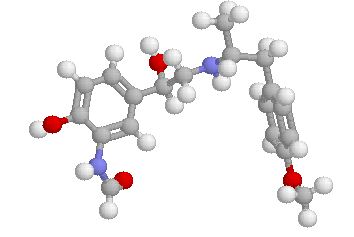

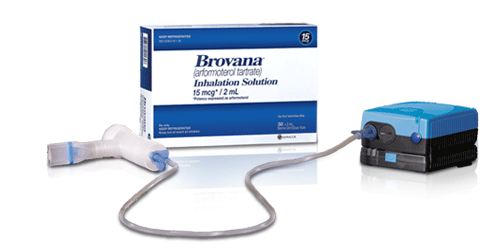

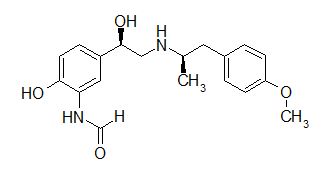

Arformoterol (Brovana)^152,¹⁷²
- Arformoterol (Brovana)
- Arformoterol (Brovana), a formoterol enantiomer (R, R), is also classified as a selective-long-acting β₂-adrenergic receptor agonist with twice the potency of the formoterol racemate.
  - This agent is FDA-approved for patients with bronchoconstriction associated with chronic obstructive pulmonary disease (COPD), including chronic bronchitis and emphysema.
- Arformoterol represents the first drug in its category developed for inhalational use with a nebulizer.
  - Its mechanism of action is the same as for other β₂ agonists; arformoterol stimulates the cAMP pathway resulting in bronchial smooth muscle relaxation as well as inhibition of mast cell mediator release (inhibition of histamine in leukotriene release).
    - Arformoterol is metabolized following pulmonary absorption by direct conjugation (forming glucuronide or sulfate conjugates) and additionally (<17%) by O-demethylation principally mediated by two cytochrome P450 isoforms, CYP2D6 and CYP2C19.
    - There have been at least five human UGT (uridine diphosphoglucuronosyltransferase) isoforms identified that catalyze arformoterol glucuronidation (in vitro).
  - Following a nebulized arformoterol dose (15μg), bronchodilation, about 15% increase in FEV₁, was noted in about 7 min. with peak effects described in 1-3 hours.
    - Evaluation of patient response to arformoterol was assessed in two 12-week randomized, double-blind clinical trials conducted in 1456 COPD patients.¹⁷²
      - Three doses of arformoterol (15μg/twice daily; 25μg/twice daily and 50μg/ once daily) were compared with placebo and salmeterol, the latter being an active control administered by metered dose inhaler, 42μg/twice daily.¹⁷²
      - Based on results from the one published study involving 717 COPD patients, patients receiving 15μg/twice daily arformoterol improved compared to placebo, as measured by FEV₁ (+16.9% vs. +6%).

        Patients treated with salmeterol exhibited a +17.4% increase in FEV1. [The unpublished results correspond closely to these.]
      - At week 12 most patients (57-62%) exhibited clinically important improvements in dyspnea with arformoterol, a percentage comparable to that observed with salmeterol.¹⁷²
  - Adverse effects are those expectable following β-adrenergic receptor activation including skeletal muscle tremor, tachycardia, reduced plasma K⁺, increased plasma glucose and insomnia.

Adverse effects associated with β-adrenergic receptor agonists:¹⁵²
- Adverse effects associated with β₂-adrenergic receptor agonists are directly related to β-receptor activation. Patients with cardiovascular disease perhaps especially myocardial disease may be particularly sensitive to adrenergic activation.
- Administration of adrenergic receptor agonist by inhalation reduces systemic absorption and accordingly decreases systemic toxicities.β₂-adrenergic agonist administration may induce tremor, which, over time, often diminishes.
- The likelihood of tremor following oral administration is reduced if a lower drug dose is administered at first, followed by increasing drug dosages as tolerance to tremor develops.
- Anxiety, apprehension, and restlessness, sometimes therapy limiting, are also noted with these drugs.
- Tachycardia is commonly observed with administration of β-adrenergic receptor agonists, possibly a consequence of direct receptor activation (β₁-adrenergic receptor subtype).
  - Another possibility is that agents with β₂-adrenergic agonist activity may produce peripheral vasodilation which, by autonomic reflex mechanisms, cause tachycardia.
  - Tachycardia associated with an ongoing severe asthma attack may be reduced following administration of a β-receptor agonist, because of improved pulmonary function on one hand and resultant reduced anxiety, which reduces circulating catecholamines, on the other.
  - If tachycardia is considered a relatively benign arrhythmia, more serious arrhythmias may develop associated with β-adrenergic stimulation in patients with pre-existing coronary vascular disease or pre-existing arrhythmia.
- Adverse cardiovascular incidents are more likely in patients receiving monoamine oxidase inhibitors (MAO inhibitors), presumably administered as part of management of endogenous depression.

References
Hoffman, B.B and Lefkowitz, R.J, Catecholamines, Sympathomimetic Drugs, and Adrenergic Receptor Antagonists, In Goodman and Gillman's The Pharmacologial Basis of Therapeutics,(Hardman, J.G, Limbird, L.E, Molinoff, P.B., Ruddon, R.W, and Gilman, A.G.,eds) The McGraw-Hill Companies, Inc.,1996, pp.199-242 Stoelting, R.K., "Sympathomimetics", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, p. 260 Carotic Baroreceptors: CRRx: Mediine ReEnvisioned http://www.cvrx.com/patients/index.php?id=41 Westfall, TC and Westfall DP Adrenergic Agonists and Antagonists in Goodman and Gilman's The Pharmacological Basis of Therapeutics, eleventh editions, (Brunton LL, Lazo JS and Parker KL, eds), McGraw-Hill Medical Publishing Division, New York, 237-295, 2006. Catecholamine Biosynthesis: The Interactive Library; Edinformatics.com: http://www.edinformatics.com/interactive_molecules/info/adrenaline.htm . Standaert DG and Young AB Treatment of Central Nervous System Degenerative Disorders In Goodman and Gillman's The Pharmacologial Basis of Therapeutics,(Hardman, J.G, Limbird, L.E, Molinoff, P.B., Ruddon, R.W, and Gilman, A.G.,eds) TheMcGraw-Hill Companies, Inc.,1996, pp536-537. Adrenergic Neuronal Diagram adapted from http://www.drugabuse.gov/pubs/teaching/Teaching4/Teaching.html Guanetidine (Ismelin™, brand name not available in the U.S.) pharmacology: Clinical Pharmacology, RxList: The Internet Drug Index, http://www.rxlist.com/ismelin-drug.htm . Williams FM and Turner TJ Adrenergic Pharmacology in Principles of Pharmacology: The Pathophysiologic Basis of Drug Therapy, 2nd Edition (Golan DE, Tashijan Jr AH, Armstrong EJ and Armstrong AW, eds) Wolters Kluwer-Lippincott Williams & Wilkins, Philadelphia, 129-144, 2008. Moss J and Glick D Autonomic Function in Anesthetic Pharmacology: Physiological Principles and Clinical Practice: A Companion to Miller's Anesthesia (Evers AS and Maze M, eds) Churchill Livingstone, Philadelphia, Chapter 14, 209-226, 2004. Presynaptic Proteins, Synaptic Vesicle Docking and Membrane Fusion, http://neuromuscular.wustl.edu/pathol/snare.htm#cachan, Neuromuscular Disease Center, Washington University, St. Louis, MO USA (http://neuromuscular.wustl.edu/index.html) Sudhof TC The Synaptic Vesicle Cycle, Annual Review of Neuroscience, July 200, Vol. 27, pp 509-547. Phenochomocytoma picture (http://health-pictures.com/pheochromocytoma.htm); Geneva Foundation of Medical Education and Research, Pheochromocytoma, http://www.gfmer.ch/selected_images_v2/detail_list.php?cat1=1&cat2=113&cat3=22&cat4=2&stype=n . Brown H, Goldberg PA, Selter JG, Cabin HS, Marieb NJ, Udelsman R and Setaro JF Hemorrhagic Pheochromocytoma Associated with Systemic Corticosteroid Therapy and Presenting as Myocardial Infarction with Severe Hypertension. Clinical Case Seminar, J Clin Endocrinol Metab 2005 90: 563-569. (http://jcem.endojournals.org/cgi/content/full/90/1/563). "Clevidine (Cleviprex) for IV Treatment of Severe Hypertension", Table 1. Some Parenteral Drugs for Hypertensive Emergencies. The Medical Letter^® on Drugs and Therapeutics, Volume 50 (Issue 1295) September 22, 2008. Katzung, BG Introduction to Autonomic Pharmacology (Section II: Autonomic Drugs) in: Basic and Clinical Pharmacology (10th edition), (Katzung BG, ed) McGraw-Hill Medical , New York, pp. 75-92, 2007. Sympathetic Nerve Pathway: Neuroeffector Junction ("Simplified diagram of a sympathetic neuroeffector junction displaying genes which may be involved"); PharmGKb modified slightly to highlight uptake1, uptake-2, uptake 1 block, and location of intravesicular norephinephrine synthesis. (Pharmacogenomics Knowledge Base). http://www.pharmgkb.org/search/pathway/neurotransmitter/neuroeffector.jsp . T.E. Klein, J.T. Chang, M.K. Cho, K.L. Easton, R. Fergerson, M. Hewett, Z. Lin, Y. Liu, S. Liu, D.E. Oliver, D.L. Rubin, F. Shafa, J.M. Stuart and R.B. Altman, "Integrating Genotype and Phenotype Information: An Overview of the PharmGKB Project" (220k PDF), The Pharmacogenomics Journal (2001) 1, 167-170. Tellioglu T, Robertson D (November 2001). "Genetic or acquired deficits in the norepinephrine transporter: current understanding of clinical implications". Expert Rev Mol Med 2001: 1–10. Kekuda R, Prasad PD, Wu X, Wang H, Fei YJ, Leibach FH, Ganapathy V (Aug 1998). "Cloning and functional characterization of a potential-sensitive, polyspecific organic cation transporter (OCT3) most abundantly expressed in placenta". J Biol Chem 273 (26): 15971–9. Amphoux A, Vialou V, Drescher E, Brüss M, Mannoury La Cour C, Rochat C, Millan MJ, Giros B, Bönisch H, Gautron S. (Jun 2006). "Differential pharmacological in vitro properties of organic cation transporters and regional distribution in rat brain.". Neuropharmacology 50 (8): 941–952. Bourne HR and von Zastrow M "Drug Receptors and Pharmacodyamics" Chapter 2 in Basic and Clinical Pharmacology (10th edition), (Katzung BG, ed) McGraw-Hill Medical , New York, pp. 17-27, 2007. Muller M Lecture Material Online: Lecture 6: "Cellular Communication" http://www.uic.edu/classes/bios/bios100/summer2003/lect06.htm. Bowman T and Jove R STAT Proteins and Cancer: From the Molecular Oncology Program at the H. Lee Moffitt Cancer Center & Research Institute, Tampa, Florida http://www.moffitt.org/moffittapps/ccj/v6n6/dept6h.htm . Tong L, Warren TC, King J, Betageri R, Rose J, Jakes S (March 1996). "Crystal structures of the human p56lck SH2 domain in complex with two short phosphotyrosyl peptides at 1.0 A and 1.8 A resolution". J. Mol. Biol. 256 (3): 601–10. Sadowski I, Stone JC, Pawson T (December 1986). "A noncatalytic domain conserved among cytoplasmic protein-tyrosine kinases modifies the kinase function and transforming activity of Fujinami sarcoma virus P130gag-fps". Mol. Cell. Biol. 6 (12): 4396–4408. Russell RB, Breed J, Barton GJ (June 1992). "Conservation analysis and structure prediction of the SH2 family of phosphotyrosine binding domains". FEBS Lett. 304 (1): 15–20. von Zastrow M and Bourne HR "Drug Receptors and Pharmacodynamics" Chapter 2 in Basic and Clinical Pharmacology (11th edition), (Katzung BG, Masters, SB and Trevor AJ, eds) McGraw-Hill Medical , New York, on-line version (Access Medicine) 2009. Powledge TM (2004) Nicotine as Therapy. PLoS Biol 2(11): e404. doi:10.1371/journal.pbio.0020404 (http://www.plosbiology.org/article/info:doi/10.1371/journal.pbio.0020404) Green T, Heinemann SF and Gusella JF Molecular Neurobiology and Genetics: Investigation of Neuron Function and Dysfunction (Review) Neuron, Vol. 20, 427-444, March, 1998 (Cell Press (c), 1998). Unwin N Nicotinic acetylcholine receptor at 9 Å resolution. J. Mol. Biol. 229, 1101-1124. Eyford, T Adenylyl cyclase http://proteopedia.org/wiki/index.php/Adenylyl_cyclase . 31 a. Hurley JH. Structure, mechanism, and regulation of mammalian adenylyl cyclase. J Biol Chem. 1999 Mar 19;274(12):7599-602. 31 b, Zhang G, Liu Y, Ruoho AE, Hurley JH. Structure of the adenylyl cyclase catalytic core. Nature. 1997 Mar 20;386(6622):247-53. Goodsell DS illustrator, The Scrips Research Institute, public domain work, http://en.wikipedia.org/wiki/Adenylate_cyclase . Ranganathan R, Ross E (1997). "PDZ domain proteins: scaffolds for signaling complexes.". Curr Biol 7 (12): R770–3 PDZ domain http://en.wikipedia.org/wiki/PDZ_domain Biaggioni I and Robertson D Adrenoceptor Agonists & Sympathomimetic Drugs (Chapter 9) in in Basic and Clinical Pharmacology (11th edition), (Katzung BG, Masters, SB and Trevor AJ, eds) McGraw-Hill Medical , New York, on-line version (Access Medicine) 2009. Korte E "PIP2 cleavage by PLC to release IP3 and DAG", public domain, http://en.wikipedia.org/wiki/File:PIP2_cleavage_to_IP3_and_DAG.jpg . McVary KT A review of combination therapy in patients with benign prostatic hyperplasia, Clinical Therapeutics 2007 29 (3): 387-398. Caine M The present role of alpha-adrenergic blockers in the treatment of benign prostatic hypertrophy. J Urol. 1986; 136: 1-4. Shapiro E Hartanto V and Lepor H. The response to alpha blockade in benign prostatic hyperplasia is related to the percent area density of prostate smooth muscle. Prostate. 1992; 21: 297-307. Brittsan AG and Kranias EG Review: Phosphlakmban and Cardiac Contractile Function. J. Mol Cell Cardiol 32. 2131-2139. Lomize A Phospholamban Pentamer, protein image from OPM database, public domain media (http://en.wikipedia.org/wiki/File:1zll_opm.gif) Foex P and Highan H. Myocardial Performance: Physiological Principles and Clinical Practice: A Companion to Miller's Anesthesia (Evers AS and Maze M, eds) Churchill Livingstone, Philadelphia, Chapter 14, 284-2285, 2004. 42(a) Weiss HR Effect of coronary artery occlusion on regional arterial and venous O₂ saturation, O₂ extraction, blood flow and O₂ consumption in the dog heart. Circulation Research 47(3) 400-407, September 1980. Khouri EM Gregg DE and Rayford CR Effect of exercise on cardiac output, left coronary flow and myocardial metabolism in the unanesthetized dog. Circulation Research 17(5) 327-437, November 1965. Epicardial Vessels: Gray's Anatomy, 20th U.S. edition of Gray's Anatomy of the Human Body, originally publishedin 1918, public domain. Beta-2 Adrenergic Receptor, figure public domain (http://en.wikipedia.org/wiki/File:2RH1.png); original crystallographic citations: 45 (a) Cherezov V, Rosenbaum DM, Hanson MA, Rasmussen SG, Thian FS, Kobilka TS, Choi HJ, Kuhn P, Weis WI, Kobilka BK, Stevens RC (2007). "High-resolution crystal structure of an engineered human β₂-adrenergic G protein-coupled receptor". Science 318 (5854): 1258–65. 45 (b) Rosenbaum DM, Cherezov V, Hanson MA, Rasmussen SG, Thian FS, Kobilka TS, Choi HJ, Yao XJ, Weis WI, Stevens RC, Kobilka BK (2007). "GPCR engineering yields high-resolution structural insights into β₂-adrenergic receptor function". Science 318 (5854): 1266–73. Westfall, TC and Westfall DP Neurotransmission: The Autonomic and Somatic Motor Nervous System in Goodman and Gilman's The Pharmacological Basis of Therapeutics, eleventh editions, (Brunton LL, Lazo JS and Parker KL, eds), McGraw-Hill Medical Publishing Division, New York, 137-181, 2006. Emorine LJ Marullo S Briend-Sutren MM Patey G Tate K Delavier-Klutchko C Strosberg AD Molecular characterization of the human β₃-adrenergic receptor. Science, Vol. 245, No. 4922, Sep. 8, 1989, pp. 1118-1121. Walston J Silver K Bogardus C Knowler W Celi FS Austin S Manning B Strosberg AD Stern MP Raben N Sorkin JD Roth J Shuldiner AR Time of onset of non-insulin-dependent diabetes mellitus and genetic variation in the β₃-adrenergic receptor gene. New England J. of Medicine, Vol. 333 No. 6, August 10, 1995, pp. 343-347. Hoffman BB Adrenoceptor-Activating & Other Sympathomimetic Drugs in: Basic and Clinical Pharmacology (10th edition), (Katzung BG, ed) McGraw-Hill Medical , New York, pp. 121-140, 2007. Goodsell, DS, Tyrosine Hydroxylase, The Scripps Research Institute, public domain image, http://en.wikipedia.org/wiki/File:Tyrosine_Hydroxylase.png . Chemical Synapse, http://schools-wikipedia.org/wp/c/Chemical_synapse.htm . Frang H Cockcroft V Karskela T Scheinin M Marjamaki A Phenoxybenzamine binding reveals the helical orientation of the third transmembrane domain of adrenergic receptors JBC, 276, 31279-31284, June 6, 2001. http://www.jbc.org/content/276/33/31279.full Barrett KE Barman SM Boitano S Brooks H "The Adrenal Medulla & Adrenal Cortex" in: Ganong's Review of Medical Physiology, 23e, Chapter 22, on-line version, 2010. Achermann JC and Jameson JL "Disorders of Sex Development" in Harrison's Principles of Internal Medicine (eds, Fauci AS Braunwald E Kasper DL Hauser SL Longo DL Jameson JL Loscalzo J), 17th edition, pp 2345-2346, 2008, McGraw-Hill Medical, New York. Goldenberg M Aranow H Jr Smith AA Faber M Pheochromocytoma and essential hypertensive vascular disease. Arch. Intern. Med. 86: 823-826, 1950. Carrim YO "The Cardiovascular system, heart muscle; The heart as a pump." http://samedical.blogspot.com/2010/08/heart-muscle-heart-as-pump.html . "Madhero88" "A graphical representation of the electrical conduction system of the heart showing the sinoatrial node, atrioventricular none, bundle of His, Purkinje fibers and Bachmann's bundle, http://en.wikipedia.org/wiki/File:ConductionsystemoftheheartwithouttheHeart.png . Ewy GA Cardiopulmonary and Cardiocerebral Resuscitation, Chapter 50, in Hurst's The Heart, 12th edition (eds, Fuster V O'Rourke RA Wash RA Poole-Wilson P; associate eds: King II SB Roberts R Nash IS Prystowsky EN; Editors of the online edition: senior editors: Walsh RA and Simon DI; associate Editors; Hoit BD Fang JC Costa M), 2008, on-line edition. 58a. American Heart Association. 2005 American Heart Association guidelines for cardiopulmonary resuscitation and emergency cardiovascular care. Circulation, 2005; 112 (Suppl IV): IV-1-IV-211. Mohrman DE and Heller LJ "Vascular Control" Chapter 7, in Cardiovascular Physiology, 6th edition, The McGraw-Hill Companies, Inc, 2006, on-line edition. Stoelting, RK and Dierdorf, SF, "Asthma" in Anesthesia and Co-Existing Disease, 4th edition, Chapter 14, pp 194-204, Churchill-Livingstone, Philadelphia, 2002 60a. Kingston, HGG, Hirshman, CA Perioperative management of the patient with asthma. Anesth Analg 1984; 63: 844-55. (second sourced from reference 1) Roisen, MF, "Anesthetic Implications of Concurrent Diseases" in Anesthesia, 5th edition, (Miller, R.D, editor), Chapter 25, pp 996-997, Churchill-Livingstone, Philadephia 2000. Barrett KE Barman SM Boitano S Brooks H "Endocrine Functions of the Pancreas & Regulation of Carbohydrate Metabolism" in: Ganong's Review of Medical Physiology, 23e, Chapter 21, on-line version, 2010. Narayanese and YassineMrabet, Citric acid cycle (Tricarboxylic acid cycle), public domain, GNUU Free Documentation License, http://en.wikipedia.org/wiki/Citric_acid_cycle . Elayat AA, el-Naggar MM, Tahir M (1995). "An immunocytochemical and morphometric study of the rat pancreatic islets". Journal of Anatomy 186 (Pt 3): 629–37. (http://www.ncbi.nlm.nih.gov/pmc/articles/PMC1167020/pdf/janat00134-0170.pdf) 64a. Islets of Langerhans; http://en.wikipedia.org/wiki/Islets_of_Langerhans Süß C Sukale J Solima M "light microscopy of a paraffin embedded mouse islet; labels: insulin green, glucagon red, nuclei blue" Solimena Lab, Med. Fac., University of Technology, Dresden, Germany. http://en.wikipedia.org/wiki/File:Mouse_islet_LM_SolimenaLab.jpg . http://en.wikipedia.org/wiki/File:PDB_3tgl_EBI.jpg courtesy: http://www.ebi.ac.uk/ Chapus C, Rovery M, Sarda L, Verger R (1988). "Minireview on pancreatic lipase and colipase". Biochimie 70 (9): 1223–1234. Barrett KE Barman SM Boitano S Brooks H "General Principles & Energy Production in Medical Physiology in: Ganong's Review of Medical Physiology, 23e, Chapter 1, on-line version, 2010. Austgen L and Bowen R "Brown Adipose Tissue" http://www.vivo.colostate.edu/hbooks/pathphys/misc_topics/brownfat.html . Ropper AH and Samuels MA "Ion Channel Disorders: The periodic paralyses and hereditary nondystrophic mytonias (Channelopathies) in Adams & Victor's Principles of Neurology, 9e, 2009, online edition. Estelle F Simons R Gu X and Simons KJ Epinephrine absorption in adults: Intramuscular versus subcutaneous injection J Allergy Clin Immunol 2001; 108: 871-873. Flavine Adenine Dinucleotide (FAD) public domain images http://en.wikipedia.org/wiki/Flavin_adenine_dinucleotide . Axelrod J (August 1957). "O-Methylation of Epinephrine and Other Catechols in vitro and in vivo". Science 126 (3270): 400–1. Entacapone PubMed Health http://www.ncbi.nlm.nih.gov/pubmedhealth/PMH0000168 . Dopamine Degradation by "Neurotiker", public domain image, http://en.wikipedia.org/wiki/File:Dopamine_degradation.svg . Haggstrom M Breakdown of norepinephrine, public domain inkscape http://en.wikipedia.org/wiki/File:Noradrenaline_breakdown.svg . Fvasconcellos "Cartoon diagram of human catechol-O-methyl transferase (COMT) in complex with S-adenosyl methionine and 3,5-dinitrocatechol; public domain drawing. 77a. Rutherford K, Le Trong I, Stenkamp RE, Parson WW (June 2008). "Crystal structures of human 108V and 108M catechol O-methyltransferase". J Mol Biol 380 (1): 120–30, http://www.rcsb.org/pdb/explore/explore.do?structureId=3BWM . Stoelting, R.K., "Local Anesthetics", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, pp 158-181. Parrmann C Decision Making and Local Anesthesia Dimensions of Dental Hygiene, October 2008; 6(10): 24. http://www.dimensionsofdentalhygiene.com/ddhright.aspx?id=2384 . Allwood MJ Cobbold AF and Ginsberg J. Peripheral vascular effects of noradrenaline, isopropylnoradrenaline, and dopamine. Br. Med. Bull., 1963, 19: 132-136. Bloom FE Neurotransmission and the Central Nervous System in Goodman and Gilman's The Pharmacological Basis of Therapeutics, eleventh editions, (Brunton LL, Lazo JS and Parker KL,eds)McGraw-Hill Medical Publishing Division, New York, 317-340 2006. The dopamine pathways in the brain, Lundbeck Institute, CNSforum, Educational Resources, Image Bank, http://www.cnsforum.com/imagebank/item/Neuro_path_DA/default.aspx . Diseases associated with abnormalities in the basal ganglia, Lundbeck Institute, CNSforum, Educational Resources, Image Bank, http://www.cnsforum.com/imagebank/item/brain_struc_bagang_ALZ/default.aspx . Factor SA and Weiner WJ Molecular Characterization of Dopamine Receptors in Parkinson's Disease: Diagnosis and Management http://www.ncbi.nlm.nih.gov/bookshelf/br.fcgi?book=parkinsons&part=A2249 . Dopamine receptors-7- transmembrane spanning, G-protein coupled receptors, Lundbeck Institute, CNSforum, Educational Resources, Image Bank, http://www.cnsforum.com/imagebank/item/D_struc_level2/default.aspx . Standaert DG and Galanter JM Pharmacology of Dopaminergic Neurotransmission in Principles of Pharmacology: The Pathophysiologic Basis of Drug Therapy, 2nd Edition (Golan DE, Tashijan Jr AH, Armstrong EJ and Armstrong AW, eds) Wolters Kluwer-Lippincott Williams & Wilkins, Philadelphia, 185-206, 2008. Dopamine receptor subtypes, Lundbeck Institute, CNSforum, Educational Resources, Image Bank, http://www.cnsforum.com/imagebank/item/DA_rcpt_subtypes/default.aspx . D2 receptor antagonist, Lundbeck Institute, CNSforum, Educational Resources, Image Bank, http://www.cnsforum.com/imagebank/item/hrl_rcpt_sys_DA2_antag/default.aspx . Henkel J Structure of the basal ganglia, including thalamus, globus paladus, substantia nigra and cerebellum, http://en.wikipedia.org/wiki/File:Basal_Ganglia_and_Related_Structures.svg . Dopamine and Serotonin pathways, http://en.wikipedia.org/wiki/File:Dopamineseratonin.png . Valeryns G-protein receptor http://en.wikipedia.org/wiki/File:7TM4_(GPCR).png Bensaccount G-protein coupled receptor http://en.wikipedia.org/wiki/File:7TM4_(GPCR).png . Jahnichen S Activation cycle of G-proteins by G-protein-coupled receptors, http://en.wikipedia.org/wiki/File:GPCR-Zyklus.png . Raashid AS So CH Kong MMC Furtak T El-Ghundi M Cheng R O'Dowd BF George SR D₁-D₂ dopamine receptor heterooligomers with unique pharmacology are couple to rapid activation of Gq/11 in the striatum. PNAM, January 9, 2007, 104(2): 654-659. Dopamine Pathways, NIDA Research Report Series--Methamphetamine Abuse and Adiction, http://en.wikipedia.org/wiki/File:Dopamine_Pathways.png . Davie CA (2008). "A review of Parkinson's disease". Br. Med. Bull. 86: 109–27. 96a."Madhero88" Midbrain Section http://commons.wikimedia.org/wiki/File:Midbrainsection.svg . 96b Hauser RA Parkinson's Disease: Early Diagnosis and Treatment http://www.youtube.com/watch?v=T8lXjNUMaWA . Haggstrom M (images by Gillies A, (Araru) and Lynch PJ Basal Ganglia Circuits, http://en.wikipedia.org/wiki/File:Basal_ganglia_circuits.svg . Gillies A Classic connectivity diagram of the basal ganglia, showing glutamatergic pathways as red, dopaminergic as magenta and GABA pathways as blue. http://en.wikipedia.org/wiki/File:Basal-ganglia-classic.png . Gillies A (Araru) basal-ganglia-coronal-sections, http://commons.wikimedia.org/wiki/File:Basal-ganglia-coronal-sections-large.png . 99a Fisch A Basal Ganglia- Drawit to Know it- Neuroantomy Tutorial, http://www.youtube.com/watch?v=-5PXAUdWDgU . Draw it to know it site: http://www.drawittoknowit.com/ . Burns JM Wilkinson S Kieltyka J Overman J Lundsgaarde T Tollefson T Koller WC Pahwa R Troster AI Lyons KE Batnitzky S Wetzel L and Gordon MA Analysis of pallidotomy lesion positions using three-dimensional reconstruction of pallidal lesions, the basal ganglia, and the optic tract. Neurosurgery 41(6), December 1997, pp 1303-1318. 100a. Thomas BG, Insertion of an electrode during deep brain stimulation for Parkinson's disease. http://en.wikipedia.org/wiki/File:Parkinson_surgery.jpg . 100b. Deep brain simulation for Parkinson's Disease, http://www.youtube.com/watch?v=IOHtUzW02cg . Standaert DG and Young AB Treatment of Central Nervous System Degenerative Disorders: In Goodman and Gillman's The Pharmacological Basis of Therapeutics, (Brunton LL, Lazo JS and Parker KL,eds) The McGraw-Hill Companies, Inc., 2006, pp.527-538. Cotzias GC Papavasilious PS Gellene R Modification of Parkinsonism: Chornic treatment with L-DOPA. New Engl. J. Med., 19769, 280: 337-345. (cited by primary reference 101) Hornykiewicz O. Dopamine in the basal ganglia: Its role and therapeutic indictions (including the clinical use of L-DOPA). Br. Med. Bull., 1973, 29: 172-178. (cited by primary reference 101) "Marvin 101" Immunohistochemistry for alpha-synuclein showing positive staining (brown of an intraneural Lewy-body in the Substantia nigra in Parkinson disease. August 2009, http://en.wikipedia.org/wiki/File:Lewy_Body_alphaSynuclein.jpg . Beal JA Frontal (Coronal) section of the brain http://en.wikipedia.org/wiki/File:Human_brain_frontal_(coronal)_section_description_2.JPG . Sudarsky Lewis, "Chapter 24. Gait and Balance Disorders" (Chapter). Fauci AS, Braunwald E, Kasper DL, Hauser SL, Longo DL, Jameson JL, Loscalzo J: Harrison's Principles of Internal Medicine, 17e, 2008, on-line edition. 106a. Parkinsonian Gait Demonstration http://www.youtube.com/watch?v=j86omOwx0Hk . Sir William Richard Gowers, neurologist, researcher and artist, drew this illustration in 1886 as part of his documentation of Parkinson's Disease. The image appeared in his book, A Manual of Diseases of the Nervous System, still used today by medical professionals as a primary reference for this disease. (public domain due to copyright expiration). http://commons.wikimedia.org/wiki/File:Sir_William_Richard_Gowers_Parkinson_Disease_sketch_1886.svg . DeLong Mahlon R, Juncos Jorge L, "Chapter 366. Parkinson’s Disease and Other Extrapyramidal Movement Disorders" (Chapter). Fauci AS, Braunwald E, Kasper DL, Hauser SL, Longo DL, Jameson JL, Loscalzo J: Harrison's Principles of Internal Medicine, 17e,2008, on-line edition. 108a Silver D Parkinson's Disease Dementia MDTV http://www.youtube.com/watch?v=ZPnpmVWU0Hk . UCtelevision, January 31, 2008. Alpha-synuclein http://en.wikipedia.org/wiki/Alpha-synuclein . 109a. Uéda K, Fukushima H, Masliah E, Xia Y, Iwai A, Yoshimoto M, Otero DA, Kondo J, Ihara Y, Saitoh T (December 1993). "Molecular cloning of cDNA encoding an unrecognized component of amyloid in Alzheimer disease". Proc. Natl. Acad. Sci. U.S.A. 90 (23): 11282–6. 109b. Xia Y, Saitoh T, Uéda K, Tanaka S, Chen X, Hashimoto M, Hsu L, Conrad C, Sundsmo M, Yoshimoto M, Thal L, Katzman R, Masliah E (October 2001). "Characterization of the human alpha-synuclein gene: Genomic structure, transcription start site, promoter region and polymorphisms". J. Alzheimers Dis. 3 (5): 485–494. 109c. Xia Y, Saitoh T, Uéda K, Tanaka S, Chen X, Hashimoto M, Hsu L, Conrad C, Sundsmo M, Yoshimoto M, Thal L, Katzman R, Masliah E (2002). "Characterization of the human alpha-synuclein gene: Genomic structure, transcription start site, promoter region and polymorphisms: Erratum p489 Fig 3". J. Alzheimers Dis. 4 (4): 337. Cookson MR Events in alpha synuclein toxicty http://en.wikipedia.org/wiki/File:Events_in_alpha_synuclein_toxicity.jpg . (Cookson Molecular Neurodegeneration 2009 4:9) . Kitada T, Asakawa S, Hattori N, Matsumine H, Yamamura Y, Minoshima S, Yokochi M, Mizuno Y, Shimizu N (April 1998). "Mutations in the parkin gene cause autosomal recessive juvenile parkinsonism". Nature 392 (6676): 605–8. Matsumine H, Yamamura Y, Hattori N, Kobayashi T, Kitada T, Yoritaka A, Mizuno Y (April 1998). "A microdeletion of D6S305 in a family of autosomal recessive juvenile parkinsonism (PARK2)". Genomics 49 (1): 143–6 ENW Structure of the PARK2 protein http://en.wikipedia.org/wiki/File:Protein_PARK2_PDB_1iyf.png . 113a. Parkin (ligase) http://en.wikipedia.org/wiki/Parkin_(ligase) . Lohmann E, Periquet M, Bonifati V, Wood NW, De Michele G, Bonnet AM, Fraix V, Broussolle E, Horstink MW, Vidailhet M, Verpillat P, Gasser T, Nicholl D, Teive H, Raskin S, Rascol O, Destée A, Ruberg M, Gasparini F, Meco G, Agid Y, Durr A, Brice A (2003). "How much phenotypic variation can be attributed to parkin genotype?". Ann. Neurol. 54 (2): 176–85. PARK7 Gene, NIH Genetic home reference: http://ghr.nlm.nih.gov/gene/PARK7 . UCHL1 gene (PARK5), NIH Genetic home reference: http://ghr.nlm.nih.gov/gene/UCHL1 . LRRK2 gene (PARK8), NIH Genetic home reference: http://ghr.nlm.nih.gov/gene/LRRK2 . Aminoff MJ and Kerchner GA Nervous System Disorders, Chapter 24 in Current Medical Diagnosis & Treatment 2011 (McPhee SJ, Papadakis MA, eds. Rabow MW, Associate Ed) McGraw-Hill, Fiftieth edition, 2011, on-line edition. Kayser-Fleischer Ring http://en.wikipedia.org/wiki/Kayser%E2%80%93Fleischer_ring . Mattheis E Kayser-Fleicher Ring http://www.gourmandizer.com/wilsons/kf2.html . Finkbeiner S Gladstone Institute of Neurological Disease, The Taube-Koret Center for Huntington's Disease Research, and the University of California San Francisco, http://en.wikipedia.org/wiki/File:Neuron_with_mHtt_inclusion.jpg and http://www.ninds.nih.gov/news_and_events/news_articles/pressrelease_huntington's_inclusion_bodies_101304.htm . Collinge J, UCL Insitute of Neurology, Department of Neurodegenerative Disease, National Hospital for Neurology & Neurosurgery, London (http://www.ion.ucl.ac.uk/departments/neurodegeneration) Creutzfeldt-Jakob disease (CJD) http://www.youtube.com/watch?v=vKGXnwXrPCQ . Silver D Dopamine Agonist Patch for Treatment of Parkinson's MDTV http://www.youtube.com/watch?v=OlF_ysmzVYo . UCtelevision, January 22, 2008. Beal JA Department of Cellular Biology & Anatomy, Louisiana State University Health Sciences Center, "Human caudal brainstem posterior view description", http://en.wikipedia.org/wiki/File:Human_caudal_brainstem_posterior_view_description.JPG . Ferguson, Alastair V., Ted D. Hoyda, and Christopher J. Price. “The Area Postrema: A Brain Monitor and Integrator of Systemic Autonomic State.” The Neuroscientist, Vol. 14, No. 2, 182-194 (2008). 1 April 2008. http://nro.sagepub.com/content/14/2/182.abstract . [http://en.wikipedia.org/wiki/Area_postrema] . Dyskinesia http://en.wikipedia.org/wiki/Dyskinesia . Parkinson's Disease Video: Dyskinesia http://www.youtube.com/watch?v=d1jJyk_poqE . Uploaded by LloydTanTrustFund, http://www.lloydtan-trust.com/ , May 18, 2009. Aminoff MJ "Pharmacologic Management of Parkinsonism & Other Movement Disorders" Chapter 28 in Basic and Clinical Pharmacology (11th edition), (Katzung BG, Masters, SB and Trevor AJ, eds) McGraw-Hill Medical , New York, on-line version (Access Medicine) 2009. Atkielski A Schematic diagram of normal sinus rhythm for a human heart as seen on ECG, public domain image, http://en.wikipedia.org/wiki/File:SinusRhythmLabels.svg . Fred HL and Dijk HA Erythomelalgia http://en.wikipedia.org/wiki/File:Erythromelalgia.jpg . Waxman, Stephan G.; Dib-Hajj, Sulayman D. (June 2005). "Erythromelalgia: A hereditary pain syndrome enters the molecular era". Annals of Neurology 57 (6): 785–788. Ormond JK (1948). "Bilateral ureteral obstruction due to envelopment and compression by an inflammatory retroperitoneal process". J Urol. 59 (6): 1072–9; Ormond JK (October 1965). "Idiopathic retroperitoneal fibrosis: a discussion of the etiology". J Urol. 94 (4): 385–90; http://en.wikipedia.org/wiki/Retroperitoneal_fibrosis . Binda C, Hubálek F, Li M, et al. (2005). "Binding of rasagiline-related inhibitors to human monoamine oxidases: a kinetic and crystallographic analysis". Journal of medicinal chemistry 48 (26): 8148–54. Chen JJ and Swope DM Clinical pharmacology of rasagiline: A novel, second-generation propargyline for the treatment of Parkinson Disease, J Clin Pharmacol 2005 45: 878-894, on-line version. Chen JJ Swope DM and Dashtiour K Comprehensive review of rasagiline, a second-generation monoamine oxidase inhibitor, for the treatment of Parkinson's disease. Clinical Therapeutics, 29(9), 1825-1849, 2007. 135a. Riederer P and Youdim MB, Monoamine oxidase activity and monoamine metabolism in brains ofparkinsonian patients treated with I-deprenyl, J Neurochem 46 (1986), pp. 1359–1365. 135b Youdim MB and Finberg JP, Monoamine oxidase In:. In: A Lajtha, Editor, Handbook of Neurochemistry, Enzymes in the Nervous System 4, Plenum Press, New York, NY (1983), pp. 293–313. 135c Saura Marti J Kettler R, Da Prada M and Richards JG, Molecular neuroanatomy of MAO-A and MAO-B, J Neural Transm Suppl. 32 (1990), pp. 49–53. Meltzer H "Antipsychotic Agents & Lithium" Chapter 29 in Basic and Clinical Pharmacology (11th edition), (Katzung BG, Masters, SB and Trevor AJ, eds) McGraw-Hill Medical , New York, on-line version (Access Medicine) 2009. Potter WZ and Hollister LE "Antipsychotic Agents & Lithium" Chapter 29 in Basic and Clinical Pharmacology (10th edition), (Katzung BG, editor) McGraw-Hill Medical , New York, 2007. Reus VI "Chapter 386. Mental Disorders" (Chapter). Fauci AS, Braunwald E, Kasper DL, Hauser SL, Longo DL, Jameson JL, Loscalzo J: Harrison's Principles of Internal Medicine, 17e,2008, on-line edition. Meyer-Lindenberg A Schizophrenia PET scan, http://en.wikipedia.org/wiki/File:Schizophrenia_PET_scan.jpg public domain. Meyer-Lindenberg A Miletich RS Kohn PD Esposito G Carson RE Quarantelli M Weinberger DR Berman KF Reduced prefrontal activity predicts exaggerated striatal dopaminergic function in schizophrenia Nat Neurosci. 2002 Mar; 5(3): 267-271. Wisconsin card sort http://en.wikipedia.org/wiki/Wisconsin_card_sort . 141a. Berg EA. (1948). A simple objective technique for measuring flexibility in thinking J. Gen. Psychol. 39: 15-22. 141b. Psychological Assessment Resources. Computerised Wisconsin Card Sort Task Version 4 (WCST). Psychological Assessment Resources; 2003. 141c. Milner B. Effect of Different Brain Lesions on Card Sorting. Archives of Neurology 1963; 9: 90-100. 141d Greve KW, Stickle TR, Love J, Bianchini KJ, Stanford MS. Latent structure of the Wisconsin Card Sorting Test: a confirmatory factor analytic study. Archives of Clinical Neuropsychology 2005; 20: 355-364. 141e. Berman KF, Ostrem JL, Randolph C et al. Physiological activation of a cortical network during performance of the Wisconsin Card Sorting Test: a positron emission tomography study. Neuropsychologia 1995; 33: 1027-1046. 141f Cabeza R, Nyberg L. Imaging cognition II: An empirical review of 275 PET and fMRI studies. J Cogn Neurosci 2000; 12: 1-47. 141g Cannon TD, Glahn DC, Kim J, Van Erp TG, Karlsgodt K, Cohen MS, Nuechterlein KH, Bava S, Shirinyan D., Dorsolateral Prefrontal Cortex Activity During Maintenance and Manipulation of Information in Working Memory in Patients With Schizophrenia, Arch Gen Psychiatry 2005;62:1071-1080. 141h Rossi A, Daneluzzo E, Tomassini A, Struglia F, Cavallaro R, Smeraldi E, Stratta P., The effect of verbalization strategy on Wisconsin Card Sorting Test performance in schizophrenic patients receiving classical or atypical antipsychotics. BMC Psychiatry. 1290 Jan 26;6:3. Criteria for Schizophrenia: Diagnostic and Statistical Manual of Mental Disorders, Fourth Edition Text Revision Laube, B; Hirai H, Sturgess M, Betz H, and Kuhse J (1997). "Molecular determinants of antagonists discrimination by NMDA receptor subunits: Analysis of the glutamate binding site on the NR2B subunit". Neuron 18 (3): 493–503. http://www.cell.com/neuron/retrieve/pii/S0896627300812490 . User.Delldot (http://en.wikipedia.org/wiki/User:Delldot) Activated NMDAR http://en.wikipedia.org/wiki/File:Activated_NMDAR.PNG .. NMDA Receptor http://en.wikipedia.org/wiki/NMDA_receptor . The Pleasure Centres: Reward Circuit figure, http://thebrain.mcgill.ca/flash/a/a_03/a_03_cr/a_03_cr_que/a_03_cr_que.html . Tisch S, Silberstein P, Limousin-Dowsey P, Jahanshahi M. 2004. The basal ganglia: anatomy, physiology, and pharmacology. Psychiatric clinics of North America 27:757-799. Pierce RC, Kumaresan V. 2006. The mesolimbic dopamine system: The final common pathway for the reinforcing effect of drugs of abuse? Neuroscience and Biobehavioral Reviews 30:215-38. Gray's Anatomy: Dissection of brain-stem, lateral view, public domain as a result of its 1918 publication date http://en.wikipedia.org/wiki/File:Gray683.png . Beal JA, Department of Cellular Biology & Anatomy, Louisiana State University Health Sciences Center Shreveport, Human brain left dissected-midsagittal view http://en.wikipedia.org/wiki/File:Human_brain_left_dissected_midsagittal_view_description_2.JPG . Baldessarini RJ and Tarazi FI : Pharmacotherapy of Psychosis and Mania In Goodman and Gillman's The Pharmacological Basis of Therapeutics, (Brunton LL, Lazo JS and Parker KL,eds) The McGraw-Hill Companies, Inc.,2006, pp.461-500. Westfall TC and Westfall DP Adrenergic Agonists and Antagonists, Chapter 12, in Goodman & Gilman's The Pharmacological Basis of Therapeutics (Brunton LL, editor; Chabner BA and Knollmann BC, associate editors), 12th edition, McGraw Hill Medical, 2011, 277-333. Rippe, James M.; Irwin, Richard S. (2003). Irwin and Rippe's intensive care medicine. Philadelphia: Lippincott Williams & Wilkins. "Madhero88" Ventricular assist device, http://en.wikipedia.org/wiki/File:Ventricular_assist_device.png . Ventricular Assist Device http://en.wikipedia.org/wiki/Ventricular_assist_device . Kotchen TA, "Chapter 241. Hypertensive Vascular Disease". Fauci AS, Braunwald E, Kasper DL, Hauser SL, Longo DL, Jameson JL, Loscalzo J: Harrison's Principles of Internal Medicine, 17e,2008, on-line edition. Wood F, Hypertensive Retinopathy, http://en.wikipedia.org/wiki/File:Hypertensiveretinopathy.jpg . Wong TY, Mcintosh R (2005). "Hypertensive retinopathy signs as risk indicators of cardiovascular morbidity and mortality". British Medical Bulletin 73-74: 57–70. 158a. Hypertensive retinopathy http://en.wikipedia.org/wiki/Hypertensive_retinopathy . Public Domain, "Lead II (2) ECG EKG strip of an AICD ICD converting a patient back into thier baseline cardiac ryhthm. The AICD fires near the end of the strip, where the straight line is seen." http://en.wikipedia.org/wiki/File:Torsades_converted_by_AICD_ECG_strip_Lead_II.JPG . Torsade de Pointes from "HeartStartSkills" http://www.youtube.com/watch?v=1ccTO6fNobU . 3rd Degree Atrioventriular Block from "HeartStartSkills" http://www.youtube.com/watch?v=NEGnCKC0Mrk . Saucerman J "Automated contractility measurements of cardiac myocytes" http://www.youtube.com/watch?v=EuciGjPwqtc and http://bme.virginia.edu/saucerman/index.php?n=Main.People . Kauczuk Cultured skin mast cells, stained with Tol Blue, http://en.wikipedia.org/wiki/File:SMCpolyhydroxysmall.jpg . Prussin C, Metcalfe DD (2003). "IgE, mast cells, basophils, and eosinophils". J Allergy Clin Immunol 111 (2 Suppl): S486–94; http://en.wikipedia.org/wiki/Mast_cell . A Levalbuterol Metered-Dose Inhaler (Xopenex HFA) for Asthma: The Medical Letter on Drugs and Therapeutics, March 13, 2006, Issue 1230 p. 21. Lotval J Palmqvist M Arvidsson P Maloney A Ventresca GP Ward J The therapeutic ratio of R-albuterol is comparable with that of RS-albuterol in asthmatic patients. J. Allergy Clin Immunol 2001 Nov; 108(5): 726-731. Mills B Ball-and-stick model of the (R)-salbutamol (top) and (S)-salbutamol (bottom) molecules, both C₁₃H₂₁NO₃ . http://en.wikipedia.org/wiki/File:RS-salbutamol-from-xtal-3D-balls.png . 3M Autohaler™ http://solutions.3m.com/wps/portal/3M/en_WW/DrugDeliverySystems/DDSD/technology-solutions/inhalation-technology/systems/autohaler/ . FDA Drug Safety Communication: New safety requirements for long-acting inhaled asthma medications called Long-Acting Beta-Agonists (LABAs) . Fanta CH Drug Therapy: Asthma N Engl J Med March 5, 2009 1002-1014. Mometasone/Formoterol (Dulera) for Asthma The Medial Letter on Drugs and Therapeutics October 18, 2010, issue 1349, p. 83. Arformoterol (Brovana) for COPD The Medical Letter Online, July 2, 2007 Issue 1264, p. 53.
