Medical Pharmacology: Autonomic nervous System (Adrenergic)

Drugs that affect (or mimic) adrenergic function (Mechanisms)⁴⁶:

I. Interference with transmitter synthesis: α-methyltyrosine, which inhibits tyrosine hydroxylase (tyrosine 3-monooxygenase), leading to depletion of the endogenous neurotransmitter, norepinephrine (NE)
- Tyrosine Hydroxylase⁵⁰
II. Drug is transformed using the same pathway as the endogenous precursors⁴⁶
- Methyldopa (Aldomet) , L-α-methyl-3,4 diphydroxyphenylalanine, is transformed in a reaction catalyzed by dopamine-β-hydroxylase to α-methyl-norepinephrine which acts in the CNS as an α₂-agonist.
  - The result of central α₂-receptor activation is a reduction of sympathetic outflow.

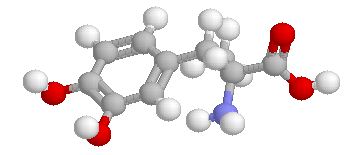

  - Methyldopa (Aldomet)

III. Inhibition of nerve terminal membrane transport

By blockade of this transport system, drugs such as cocaine and tricyclic antidepressant drugs, e.g. imipramine (Tofranil) increase synaptic cleft [NE] which increases the likelihood of adrenergic receptor activation.
Cocaine

Imipramine (Tofranil)

**Neuronal Catecholamine Transporters [NET, norepinephrine; DAT, dopamine)⁴⁶**
Norepinephrine Transporter (NET)	Transporter specificity: dopamine > norepinephrine > epinephrine	Sites of action: Sympathetically-innervated locations: sympathetic nerves Placenta: syncytiotrophoblast cells Hepatic: capillary endothelium Adrenal medulla: chromaffin cells	NET inhibitors: desipramine (tricyclic antidepressant drug); cocaine
Dopamine Transporter (DAT)	Transporter specificity: dopamine >>> norepinephrine > epinephrine	Sites of action: Renal: endothelium Stomach: endothelial and parietal cells Pancreas: ductal cells	DAT inhibitors: cocaine

The norepinephrine transporter (NET) in addition to be inhibited by tricyclic antidepressants and cocaine is also Na⁺-dependent.
The transporter has a higher affinity for norepinephrine compared to epinephrine; whereas, isoproterenol is not transported.
- Other specific neurotransmitter transport systems have been described, including examples for dopamine, serotonin, and amino acids.
- Such transporters exhibit a common transmembrane structure consisting of 12-helices.
Displacement of nerve terminal norepinephrine by ephedrine and tyramine (sympathomimetic agents) also depends on NET.
- When, for example, ephedrine is transported across the neuronal membrane by this transporter and is released into the intracellular cytoplasm, the open transporter carrier sites become available at the inner membrane surface.
  - These open sites then can transport norepinephrine outward in a process described as "facilitated exchange diffusion."
- Ephedrine and tyramine also compete for norepinephrine uptake into vesicles and as a result tend to mobilize these neurotransmitter stores also.
- As noted earlier, extraneuronal transporters are also present.
  - One example is ENT a.k.a. uptake-2 and OCT3.
    - ENT is not Na⁺-dependent and transports organic cations.
  - Other organic cation transporters include OCT1 and OCT2.
    - These transporters not only act on catecholamines but also other organic acids such as serotonin, guanidine, creatinine, and histamine.
- The NET transporter plays an important role in termination of norepinephrine and epinephrine action.
  - Reuptake of these catecholamines by NET is a principal mechanism for limiting extended catecholamine-mediated adrenergic receptor activation.
  - Extraneuronal uptake of catecholamines, following diffusion away from the synaptic cleft, also limits catecholamine duration of action.
  - Metabolic transformation of the catecholamines by MAO (monoamine oxidase) and COMT (catechol-O-methyl transferase) is a third factor in termination of catecholamine actions.

IV. Vesicular transport system inhibition⁴⁶

Blockade of this transport system (VMAT, vesicular monoamine transporter) results in depletion of norepinephrine from adrenergic nerve endings.

Inability of NE to be transported into synaptic vesicles exposes the neurotransmitter to enzymatic breakdown, catalyzed by mitochondrial monoamine oxidase (MAO).

Reserpine is probably the best-known agent exhibiting vesicular transport blockade.

Reserpine
Synaptic Vesicle Preparation: Electron Micrograph

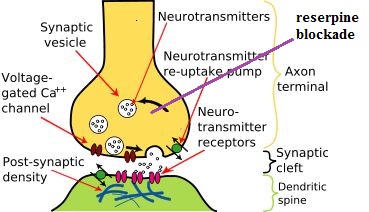

**Site of Reserpine Blockade (cytoplasmic neurotransmitter prevented from entering vesicles)⁵¹**

V. Drugs that displace neurotransmitters from nerve terminals:⁴⁶
- Amphetamine and tyramine are examples of drugs in this category.
  - The result of their action is "adrenomimetic."
- Amphetamine

  Tyramine
VI. Bretylium and guanadrel (Hyorel) prevent adrenergic neurotransmitter release.

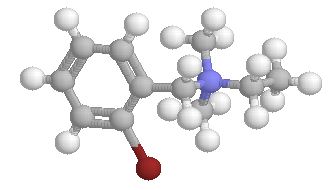

Bretylium

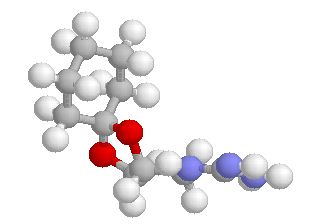

Guanadrel (Hyorel)

References
Hoffman, B.B and Lefkowitz, R.J, Catecholamines, Sympathomimetic Drugs, and Adrenergic Receptor Antagonists, In Goodman and Gillman's The Pharmacologial Basis of Therapeutics,(Hardman, J.G, Limbird, L.E, Molinoff, P.B., Ruddon, R.W, and Gilman, A.G.,eds) TheMcGraw-Hill Companies, Inc.,1996, pp.199-242 Stoelting, R.K., "Sympathomimetics", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, p. 260 Carotic Baroreceptors: CRRx: Mediine ReEnvisioned http://www.cvrx.com/patients/index.php?id=41 Westfall, TC and Westfall DP Adrenergic Agonists and Antagonists in Goodman and Gilman's The Pharmacological Basis of Therapeutics, eleventh editions, (Brunton LL, Lazo JS and Parker KL, eds), McGraw-Hill Medical Publishing Division, New York, 237-295, 2006. Catecholamine Biosynthesis: The Interactive Library; Edinformatics.com: http://www.edinformatics.com/interactive_molecules/info/adrenaline.htm . Standaert DG and Young AB Treatment of Central Nervous System Degenerative Disorders In Goodman and Gillman's The Pharmacologial Basis of Therapeutics,(Hardman, J.G, Limbird, L.E, Molinoff, P.B., Ruddon, R.W, and Gilman, A.G.,eds) TheMcGraw-Hill Companies, Inc.,1996, pp536-537. Adrenergic Neuronal Diagram adapted from http://www.drugabuse.gov/pubs/teaching/Teaching4/Teaching.html Guanetidine (Ismelin™, brand name not available in the U.S.) pharmacology: Clinical Pharmacology, RxList: The Internet Drug Index, http://www.rxlist.com/ismelin-drug.htm . Williams FM and Turner TJ Adrenergic Pharmacology in Principles of Pharmacology: The Pathophysiologic Basis of Drug Therapy, 2nd Edition (Golan DE, Tashijan Jr AH, Armstrong EJ and Armstrong AW, eds) Wolters Kluwer-Lippincott Williams & Wilkins, Philadelphia, 129-144, 2008. Moss J and Glick D Autonomic Function in Anesthetic Pharmacology: Physiological Principles and Clinical Practice: A Companion to Miller's Anesthesia (Evers AS and Maze M, eds) Churchill Livingstone, Philadelphia, Chapter 14, 209-226, 2004. Presynaptic Proteins, Synaptic Vesicle Docking and Membrane Fusion, http://neuromuscular.wustl.edu/pathol/snare.htm#cachan, Neuromuscular Disease Center, Washington University, St. Louis, MO USA (http://neuromuscular.wustl.edu/index.html) Sudhof TC The Synaptic Vesicle Cycle, Annual Review of Neuroscience, July 200, Vol. 27, pp 509-547. Phenochomocytoma picture (http://health-pictures.com/pheochromocytoma.htm); Geneva Foundation of Medical Education and Research, Pheochromocytoma, http://www.gfmer.ch/selected_images_v2/detail_list.php?cat1=1&cat2=113&cat3=22&cat4=2&stype=n . Brown H, Goldberg PA, Selter JG, Cabin HS, Marieb NJ, Udelsman R and Setaro JF Hemorrhagic Pheochromocytoma Associated with Systemic Corticosteroid Therapy and Presenting as Myocardial Infarction with Severe Hypertension. Clinical Case Seminar, J Clin Endocrinol Metab 2005 90: 563-569. (http://jcem.endojournals.org/cgi/content/full/90/1/563). "Clevidine (Cleviprex) for IV Treatment of Severe Hypertension", Table 1. Some Parenteral Drugs for Hypertensive Emergencies. The Medical Letter^® on Drugs and Therapeutics, Volume 50 (Issue 1295) September 22, 2008. Katzung, BG Introduction to Autonomic Pharmacology (Section II: Autonomic Drugs) in: Basic and Clinical Pharmacology (10th edition), (Katzung BG, ed) McGraw-Hill Medical , New York, pp. 75-92, 2007. Sympathetic Nerve Pathway: Neuroeffector Junction ("Simplified diagram of a sympathetic neuroeffector junction displaying genes which may be involved"); PharmGKb modified slightly to highlight uptake1, uptake-2, uptake 1 block, and location of intravesicular norephinephrine synthesis. (Pharmacogenomics Knowledge Base). http://www.pharmgkb.org/search/pathway/neurotransmitter/neuroeffector.jsp . T.E. Klein, J.T. Chang, M.K. Cho, K.L. Easton, R. Fergerson, M. Hewett, Z. Lin, Y. Liu, S. Liu, D.E. Oliver, D.L. Rubin, F. Shafa, J.M. Stuart and R.B. Altman, "Integrating Genotype and Phenotype Information: An Overview of the PharmGKB Project" (220k PDF), The Pharmacogenomics Journal (2001) 1, 167-170. Tellioglu T, Robertson D (November 2001). "Genetic or acquired deficits in the norepinephrine transporter: current understanding of clinical implications". Expert Rev Mol Med 2001: 1–10. Kekuda R, Prasad PD, Wu X, Wang H, Fei YJ, Leibach FH, Ganapathy V (Aug 1998). "Cloning and functional characterization of a potential-sensitive, polyspecific organic cation transporter (OCT3) most abundantly expressed in placenta". J Biol Chem 273 (26): 15971–9. Amphoux A, Vialou V, Drescher E, Brüss M, Mannoury La Cour C, Rochat C, Millan MJ, Giros B, Bönisch H, Gautron S. (Jun 2006). "Differential pharmacological in vitro properties of organic cation transporters and regional distribution in rat brain.". Neuropharmacology 50 (8): 941–952. Bourne HR and von Zastrow M "Drug Receptors and Pharmacodyamics" Chapter 2 in Basic and Clinical Pharmacology (10th edition), (Katzung BG, ed) McGraw-Hill Medical , New York, pp. 17-27, 2007. Muller M Lecture Material Online: Lecture 6: "Cellular Communication" http://www.uic.edu/classes/bios/bios100/summer2003/lect06.htm. Bowman T and Jove R STAT Proteins and Cancer: From the Molecular Oncology Program at the H. Lee Moffitt Cancer Center & Research Institute, Tampa, Florida http://www.moffitt.org/moffittapps/ccj/v6n6/dept6h.htm . Tong L, Warren TC, King J, Betageri R, Rose J, Jakes S (March 1996). "Crystal structures of the human p56lck SH2 domain in complex with two short phosphotyrosyl peptides at 1.0 A and 1.8 A resolution". J. Mol. Biol. 256 (3): 601–10. Sadowski I, Stone JC, Pawson T (December 1986). "A noncatalytic domain conserved among cytoplasmic protein-tyrosine kinases modifies the kinase function and transforming activity of Fujinami sarcoma virus P130gag-fps". Mol. Cell. Biol. 6 (12): 4396–4408. Russell RB, Breed J, Barton GJ (June 1992). "Conservation analysis and structure prediction of the SH2 family of phosphotyrosine binding domains". FEBS Lett. 304 (1): 15–20. von Zastrow M and Bourne HR "Drug Receptors and Pharmacodynamics" Chapter 2 in Basic and Clinical Pharmacology (11th edition), (Katzung BG, Masters, SB and Trevor AJ, eds) McGraw-Hill Medical , New York, on-line version (Access Medicine) 2009. Powledge TM (2004) Nicotine as Therapy. PLoS Biol 2(11): e404. doi:10.1371/journal.pbio.0020404 (http://www.plosbiology.org/article/info:doi/10.1371/journal.pbio.0020404) Green T, Heinemann SF and Gusella JF Molecular Neurobiology and Genetics: Investigation of Neuron Function and Dysfunction (Review) Neuron, Vol. 20, 427-444, March, 1998 (Cell Press (c), 1998). Unwin N Nicotinic acetylcholine receptor at 9 Å resolution. J. Mol. Biol. 229, 1101-1124. Eyford, T Adenylyl cyclase http://proteopedia.org/wiki/index.php/Adenylyl_cyclase . 31 a. Hurley JH. Structure, mechanism, and regulation of mammalian adenylyl cyclase. J Biol Chem. 1999 Mar 19;274(12):7599-602. 31 b, Zhang G, Liu Y, Ruoho AE, Hurley JH. Structure of the adenylyl cyclase catalytic core. Nature. 1997 Mar 20;386(6622):247-53. Goodsell DS illustrator, The Scrips Research Institute, public domain work, http://en.wikipedia.org/wiki/Adenylate_cyclase . Ranganathan R, Ross E (1997). "PDZ domain proteins: scaffolds for signaling complexes.". Curr Biol 7 (12): R770–3 PDZ domain http://en.wikipedia.org/wiki/PDZ_domain Biaggioni I and Robertson D Adrenoceptor Agonists & Sympathomimetic Drugs (Chapter 9) in in Basic and Clinical Pharmacology (11th edition), (Katzung BG, Masters, SB and Trevor AJ, eds) McGraw-Hill Medical , New York, on-line version (Access Medicine) 2009. Korte E "PIP2 cleavage by PLC to release IP3 and DAG", public domain, http://en.wikipedia.org/wiki/File:PIP2_cleavage_to_IP3_and_DAG.jpg . McVary KT A review of combination therapy in patients with benign prostatic hyperplasia, Clinical Therapeutics 2007 29 (3): 387-398. Caine M The present role of alpha-adrenergic blockers in the treatment of benign prostatic hypertrophy. J Urol. 1986; 136: 1-4. Shapiro E Hartanto V and Lepor H. The response to alpha blockade in benign prostatic hyperplasia is related to the percent area density of prostate smooth muscle. Prostate. 1992; 21: 297-307. Brittsan AG and Kranias EG Review: Phosphlakmban and Cardiac Contractile Function. J. Mol Cell Cardiol 32. 2131-2139. Lomize A Phospholamban Pentamer, protein image from OPM database, public domain media (http://en.wikipedia.org/wiki/File:1zll_opm.gif) Foex P and Highan H. Myocardial Performance: Physiological Principles and Clinical Practice: A Companion to Miller's Anesthesia (Evers AS and Maze M, eds) Churchill Livingstone, Philadelphia, Chapter 14, 284-2285, 2004. 42(a) Weiss HR Effect of coronary artery occlusion on regional arterial and venous O2 saturation, O2 extraction, blood flow and O2 consumption in the dog heart. Circulation Research 47(3) 400-407, September 1980. Khouri EM Gregg DE and Rayford CR Effect of exercise on cardiac output, left coronary flow and myocardial metabolism in the unanesthetized dog. Circulation Research 17(5) 327-437, November 1965. Epicardial Vessels: Gray's Anatomy, 20th U.S. edition of Gray's Anatomy of the Human Body, originally publishedin 1918, public domain. Beta-2 Adrenergic Receptor, figure public domain (http://en.wikipedia.org/wiki/File:2RH1.png); original crystallographic citations: 45 (a) Cherezov V, Rosenbaum DM, Hanson MA, Rasmussen SG, Thian FS, Kobilka TS, Choi HJ, Kuhn P, Weis WI, Kobilka BK, Stevens RC (2007). "High-resolution crystal structure of an engineered human β₂-adrenergic G protein-coupled receptor". Science 318 (5854): 1258–65. 45 (b) Rosenbaum DM, Cherezov V, Hanson MA, Rasmussen SG, Thian FS, Kobilka TS, Choi HJ, Yao XJ, Weis WI, Stevens RC, Kobilka BK (2007). "GPCR engineering yields high-resolution structural insights into β₂-adrenergic receptor function". Science 318 (5854): 1266–73. Westfall, TC and Westfall DP Neurotransmission: The Autonomic and Somatic Motor Nervous System in Goodman and Gilman's The Pharmacological Basis of Therapeutics, eleventh editions, (Brunton LL, Lazo JS and Parker KL, eds), McGraw-Hill Medical Publishing Division, New York, 137-181, 2006. Emorine LJ Marullo S Briend-Sutren MM Patey G Tate K Delavier-Klutchko C Strosberg AD Molecular characterization of the human β₃-adrenergic receptor. Science, Vol. 245, No. 4922, Sep. 8, 1989, pp. 1118-1121. Walston J Silver K Bogardus C Knowler W Celi FS Austin S Manning B Strosberg AD Stern MP Raben N Sorkin JD Roth J Shuldiner AR Time of onset of non-insulin-dependent diabetes mellitus and genetic variation in the β₃-adrenergic receptor gene. New England J. of Medicine, Vol. 333 No. 6, August 10, 1995, pp. 343-347. Hoffman BB Adrenoceptor-Activating & Other Sympathomimetic Drugs in: Basic and Clinical Pharmacology (10th edition), (Katzung BG, ed) McGraw-Hill Medical , New York, pp. 121-140, 2007. Goodsell, DS, Tyrosine Hydroxylase, The Scripps Research Institute, public domain image, http://en.wikipedia.org/wiki/File:Tyrosine_Hydroxylase.png . Chemical Synapse, http://schools-wikipedia.org/wp/c/Chemical_synapse.htm .
